Three Wheeled Drilling Rig, Household Vehicle Mounted Water Well Drilling Rig, Geological Exploration Coring Machine, Diesel Hydraulic Drilling Machine

1,It is widely used in the geological general investigation and exploration, road, railway, port, bridge, water conservancy, tunnel and tall building basic exploration, kinds of hole in concrete structure, river, levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioner, and etc.

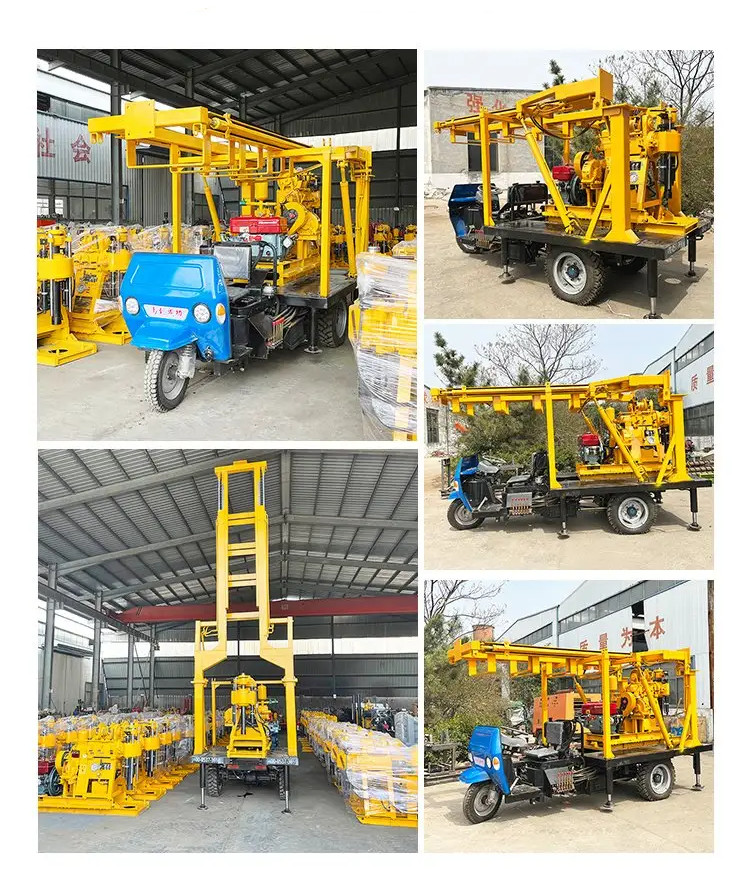

2, XYC-200A tricycle-mounted water well drilling rig is multi-functional hydraulic vehicle-mounted water well drilling rig.
The tricycle is tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
XYC-200A tricycle-mountedwater well drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
The rig is adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
Equipped with national patent technology---taper clutch, made the machine easy to operate and free of maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.

3,Technical specification of XYC-200A tricycle-mounted water well drilling rig

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
