Three Wheel Vehicle Mounted Water Well Drilling Rig Hydraulic
Drilling Equipment
1,It is widely used in the geological general investigation and
exploration, road, railway, port, bridge, water conservancy, tunnel
and tall building basic exploration, kinds of hole in concrete
structure, river, levees, subgrade grouting hole drilling and
direct grouting, civil wells and earth central air conditioner, and
etc.

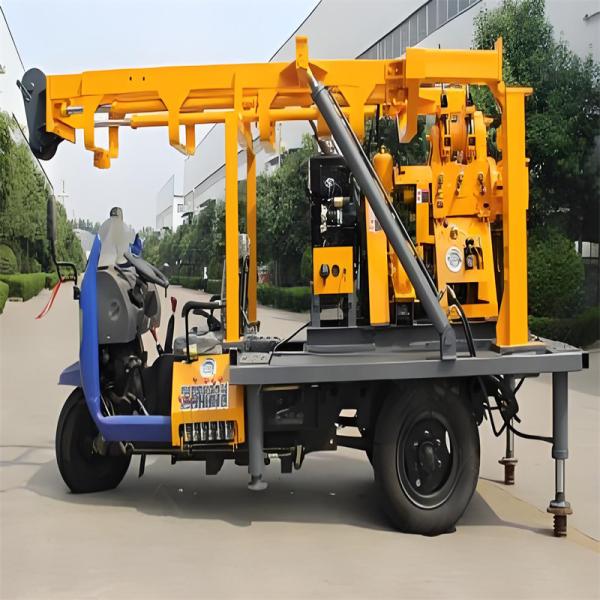

2,XYC-200A tricycle-mounted water well drilling rig is
multi-functional hydraulic vehicle-mounted water well drilling rig.
The tricycle is tricar. The drilling rig, engine, BW-160 pump and
hydraulic drill tower are all installed on the tricycle, so it us
easy for transportation.
XYC-200A tricycle-mountedwater well drilling rig with BW160 pump
which has high pressure and high flux, to ensure the drilling depth
and hole diameter.
The tricycle drilling rig is equipped with shift unit,so the
drilling rig can move back and forth
The highest speed can reach 1045r/min with 5 gears, which improves
the drilling efficiency
The rig is adopted 53*59 drilling rod, which has high rigidity and
strong delivery torque
Equipped with national patent technology---taper clutch, made the
machine easy to operate and free of maintenance.
Use large module planetary gear and add supporting frame, highly
increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure
that the core machine is rigid enough for gravel layer and other
complex geological conditions.
3,Technical specification of XYC-200A tricycle-mounted water well
drilling rig
| Model | XYC-200A |
| Drilling depth | 200m |
| Max. open hole diameter | 75-260mm |
| End hole diameter(mm) | 75 |
| Drill rod diameter | 50mm |
| Drilling tower height | 6500mm |
| Drilling angle | 90-75 |
| Spindle |
| Spindle speed | 64/128/287/557r/min |
| Spindle stroke | 450mm |
| Hoist |
| Max. single line hoisting capacity | 1600kg |
| Single line lifting speed | 17/35/75/151r/min |
| Tightrope diameter | 12.5mm |
| Tightrope cubic measure | 35mm |
| Hug floodgate belt width | 70mm |
| Mud Pump |
| Type | Horizontal Single Urn Twin-action |
| Discharge displacement | 170l/min. |
| Diesel | S1115 22HP |
| Electric motor | 15kw,1440r/min |
| Max. pressure | 1.5mpa |
| Work pressure | 0.7mpa |
| Water inlet diameter | 30mm |
| Water outlet diameter | 25mm |
| Triangle conveyre belt | B1728mm |
| Chassis | Tricar |
Note: The product is continuously improved, and subject to change
without notice, please refer to the actual product.
