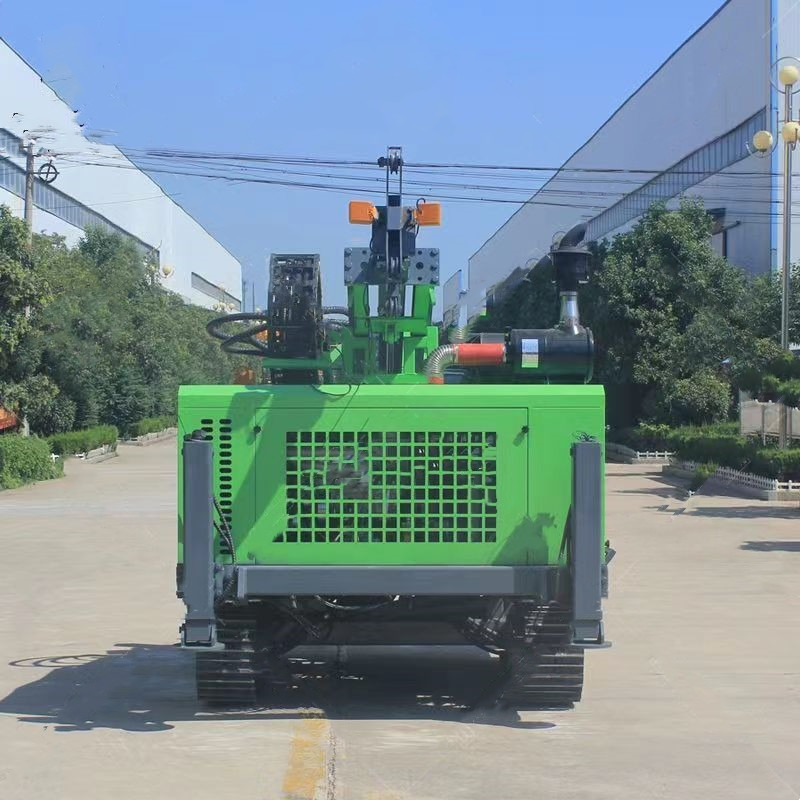

Wireline Diamond Borehole Mining Core Drilling Machine Full Hydraulic

Full Hydraulic Wireline Diamond Borehole Mining Core Drilling Machine

Fully Hydraulic Core Exploration Drilling Rig is the latest fully hydraulic rope core exploration drilling rig . It can be customized according to the needs of users to adapt to various working environments.

The hydraulic clamp system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs.

The drilling rig is equipped with a high-performance hydraulic oil pump to make the machine more flexible and stable, it adopts steel structure and thickened steel plate as a whole to increase the stability of the machine and make it stronger and more durable.

Full hydraulic core exploration drilling rig uses and advantages

1. This full hydraulic core exploration drilling rig using for prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc.

2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high.The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high.

3. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin. Traditional drilling rig Core diameter 48 bit wall thickness.

Model	YQD-400	YQD-600	YQD-800	YQD-1000
	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/ 2400r/min
	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
	30-90(L/min)	30-90(L/min)	90-180(L/min)	90-180(L/min)
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension(mm)	400019001800	400020001800	550021002000	600022002400
Weight	4.3T	4.5/5.5T	6.5T	7.5T
