    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : QYD-800
    Certification : ISO9001
    Supply Ability : 50 Sets/Month
    • Product Details
    • Company Profile

    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    1000 Coring Machine Diamond Mining Exploration Core Drilling Rig Machine


    1. Introduction of QYD-1000 fully hydraulic core exploration drilling rig

    QYD series drilling rig belongs to the multi-purpose crawler type hydraulic engineering geological exploration rig, which is a rope core drilling rig using the full hydraulic power head drilling method. The core drilled by the drilling tool is lifted out by the hoist through the drill pipe hole to complete the geological drilling core work. It is mainly applied to the drilling of solid deposits, can also be used in engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for tunnel ventilation, drainage and dam grouting and other engineering drilling.

    2. Features of QYD-1000 fully hydraulic core exploration drilling rig
    (1) Crawler chassis
    Equipped with wireless remote control crawler chassis, suitable for a variety of terrains, in a safe distance to the drilling rig walking control, prevent sudden danger.
    (2) Frame
    The frame of the welded structure is welded on the crawler chassis, which can improve the rigidity and drilling stability of the slide frame when it is erected.
    (3) Slide frame
    The sliding frame of welded structure adopts hot rolled carbon channel steel and square steel as power head guide rail, and controls the smooth lifting of oil cylinder through one-way throttle valve.
    (4) Drill tower
    The drill tower adopts the touchdown base for touchdown fixation, making drilling more stable.
    (5) Rotary mechanism
    Power head rotation using axial piston pump and inclined shaft piston motor drive, mechanical two gears plus stepless speed regulation, advanced structure.
    (6) Push mechanism
    The double speed feeding mechanism of cylinder chain is adopted, the movement is stable and reliable, and the power head side translation mechanism is equipped.
    (7) Hydraulic clamp
    To achieve clamping drill pipe, with drill pipe disassembly.
    (8) Hydraulic winch
    Hydraulic motor driven hoist, flexible lifting tool or auxiliary equipment.
    (9) Hydraulic legs
    Four hydraulic legs can quickly level the drilling rig, equipped with hydraulic lock to prevent jack creep.
    (10) Control console
    All control functions are centralized on the control table, easy to operate, save time and effort.
    (11) Hydraulic system
    The rig is fully hydraulic driven, hydraulic system adopts load sensitive control, high efficiency, high torque.
    (12) Power system
    Power system using large factory diesel engine, the national after-sales worry.
    (13) Cooling system
    Adopt air cooling and water cooling, the way is more diversified, can ensure the long time operation of the machine.

    3. Parameters of QYD-1000 fully hydraulic core exploration drilling rig

    Drilling rig modelQYD-1000
    Drilling capacityBTW (m)1400
    NTW (m)1200
    HTW (m)1000
    PQ (m)800
    Hydraulic systemRated pressure (MPA)32+16
    Cooling modeSecondary air cooling Primary water cooling
    EngineEngine typeWeichai six cylinders
    Rated power (Kw)129
    Power HeadMaximum torque (N.m)2600
    Maximum rotating speed (rpm)1400
    Feeding Stroke (m)3.5
    Lifting force (kN)360
    Propulsion force (kN)180
    Wire-line coring winchRope capacity (m)1200
    Lifting force (kN)24
    Lifting speed (m/min)110
    Touchdown integrated drill towerFull height (m)7.9
    Drilling angle (°)0-90
    Slip stroke (mm)1200
    Crawler chassisWalking modeManual + Remote control
    Transport sizeL*W*H (m)5.6*2.2*3.0
    Whole machine weightT7.3

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

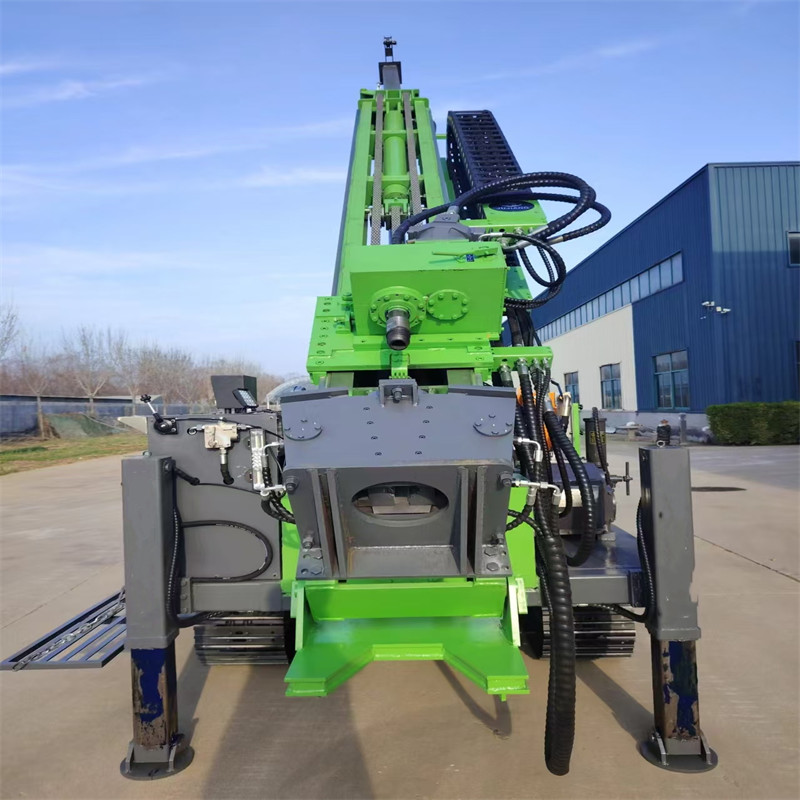

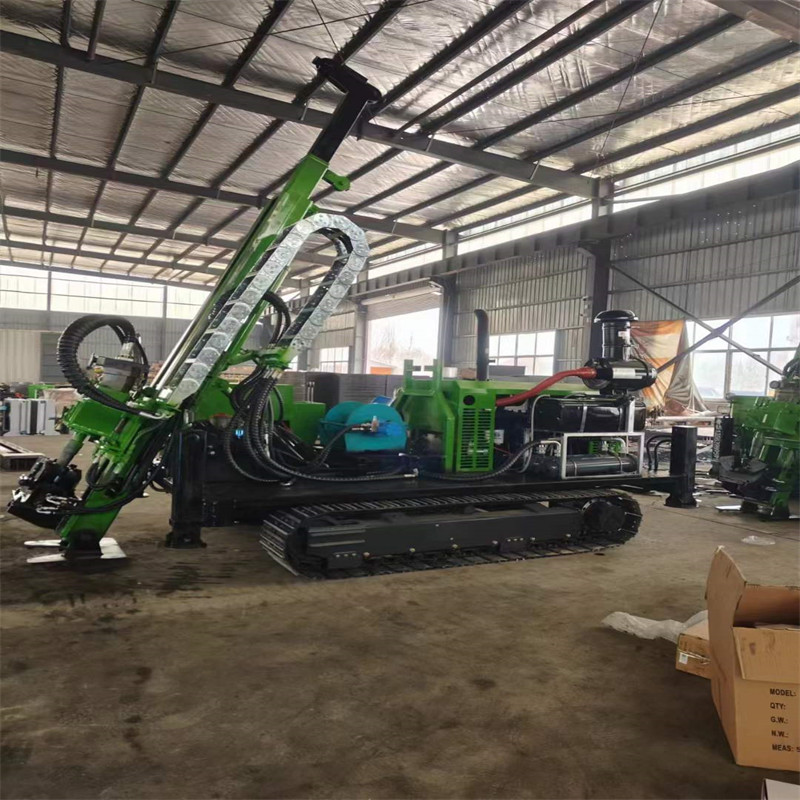

    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole DepthMining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole DepthMining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole DepthMining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    Mining Exploration Diamond Core Drilling Rig With 1000M Drill Hole Depth

    FAQ:

    1. ,1. What are our payment methods?

    100% prepayment for small sample orders., Prepay 30% deposit for bulk products and pay the remaining 70% before shipment.

    2. How to transport products?

    Express delivery, air freight, sea freight, train, etc.

    3. How to place an order?

    Please provide us with the required specifications, models, and quantities, and we will create a PI to confirm the order details. Once we have confirmed everything, we can arrange for payment and finally ship within the time frame we have specified.

    4. How to inspect the goods?

    Support customers to come to the factory for on-site inspection, support customers to designate third-party companies for inspection, and support video inspection.

    5. Can you provide us with the necessary documents for customs clearance?

    Yes, of course. We will send you commercial invoices, sales contracts, packing lists, and bills of lading (FOB or CFR, CIF terms).

    6. After sales service

    The product comes with an English manual and spare parts. We provide 24-hour service through online chat and phone, lifetime free technical support, and overseas service: if you need it, we can dispatch engineers to provide on-site service.
