Diamond Core Mining Exploration Drilling Rig With Hq Nq Bq Pq Core Lifters

Mining Full Diamond Core Drilling Rig Equipment for Sale with Hq Nq Bq Pq Core Lifters

Product Introduction:

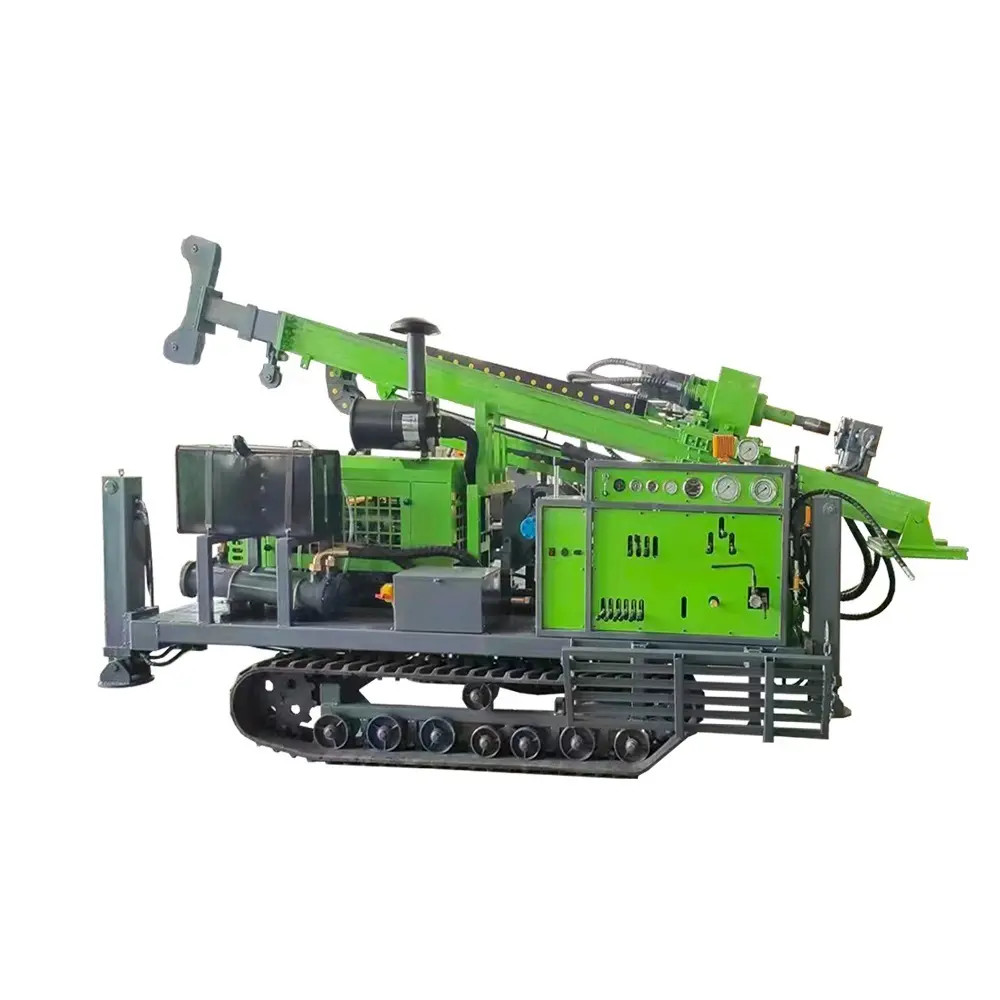

Fully Hydraulic Core Exploration Drilling Rig is the latest fully hydraulic rope core exploration drilling rig . It can be customized according to the needs of users to adapt to various working environments. The hydraulic clamp system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs. The drilling rig is equipped with a high-performance hydraulic oil pump to make the machine more flexible and stable, it adopts steel structure and thickened steel plate as a whole to increase the stability of the machine and make it stronger and more durable.

Full hydraulic core exploration drilling rig uses and advantages

1. This full hydraulic core exploration drilling rig using for prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc.

2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high.The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high.

3. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin. Traditional drilling rig Core diameter 48 bit wall thickness.

Technical Parameter:

Model	YQD-400	YQD-600	YQD-800	YQD-1000
	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/ 2400r/min
	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
	30-90(L/min)	30-90(L/min)	90-180(L/min)	90-180(L/min)
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension(mm)	400019001800	400020001800	550021002000	600022002400
Weight	4.3T	4.5/5.5T	6.5T	7.5T

Diamond Core Mining Exploration Drilling Rig With Hq Nq Bq Pq Core Lifters

Hengshui Aoxing Geological Equipment Co., Ltd. has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packer, manual packer, high-pressure grouting pipe, pneumatic hose, FULO grouting pipe, sleeve valve grouting pipe, grouting data acquisition instrument, grouting pump, screw grouting pump, cement mixer, high-speed grouting machine, mud station, spray, Lurong test packer and Lurong test equipment, diamond bit, reamer, geological drill pipe and casing, hydraulic drill, core drill, geological drill, exploration drill, soil testing and investigation drill, full hydraulic drill, module drill, portable drill, water well drill, engineering drill, mechanical top drive drill, small drill, DHT drill, air compressor, core barrel, fishing bucket, SP T tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.

Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.

We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
