    5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : 3 7/8~13 5/8
    Certification : ISO9001
    • Product Details
    • Company Profile

    5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling

    5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling
    Oil PDC bits Structural drawings
    5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling
    Oil PDC bits technical Data
    Regular Models of PDC Bits
    Regular SizesRegular IADCAPI Reg PinMake-up Torque(N.m)
    3 7/8"(98.4mm)126/216/6372 3/84100~4700
    4 5/8"(117.4mm)126/216/517/537/6372 7/86100~7500
    5 1/4"(133.3mm)3 1/29500~12200
    5 5/8"(142.8mm)
    5 7/8"(149.2mm)
    6"(152.4mm)126/127/216/517/537/617/637
    6 1/4"(158.7mm)
    6 1/2"(165mm)
    7 1/2"(190mm)126/216/517/5374 1/216300~21700
    7 5/8"(193mm)
    7 7/8"(200mm)
    8 1/2"(215.9mm)117/127/217/437/517/537/617/637
    9 1/2"(241.3mm)6 5/838000~43400
    9 7/8"(250.8mm)
    10 5/8(269.8mm)
    11 5/8(295.3mm)
    12 1/4"(311.1mm)
    13 5/8"(346.0mm)127/217/517/537/617/637
    14 3/4"(374.6mm)7 5/846100~54200
    17 1/2"(444.5mm)114/115/125/215/515/535/615/635
    26"(660.4mm)114/115/125/215/515/535/615

    Product Features
    1. Soft to medium-hard formation application
    Medium Parabolic crown profile and heavy cutter density provide high ROP in medium to hard formations with
    medium compressive strength and small abrasive layers.

    2. Multi-function hydraulics
    The deep blade design can get high ROP in medium to hard formations and can effectively cool the bit in hard
    and abrasive formations

    3. Longer Bit Life
    High intensified gage design provides for long runs on steerable system through hard and abrasiive formations
    as steering application.

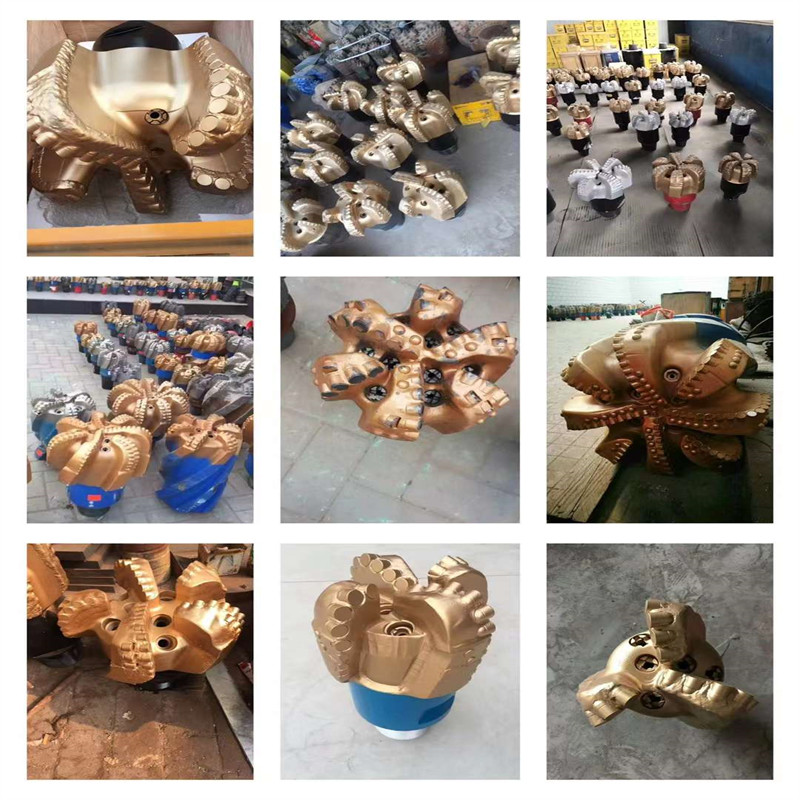

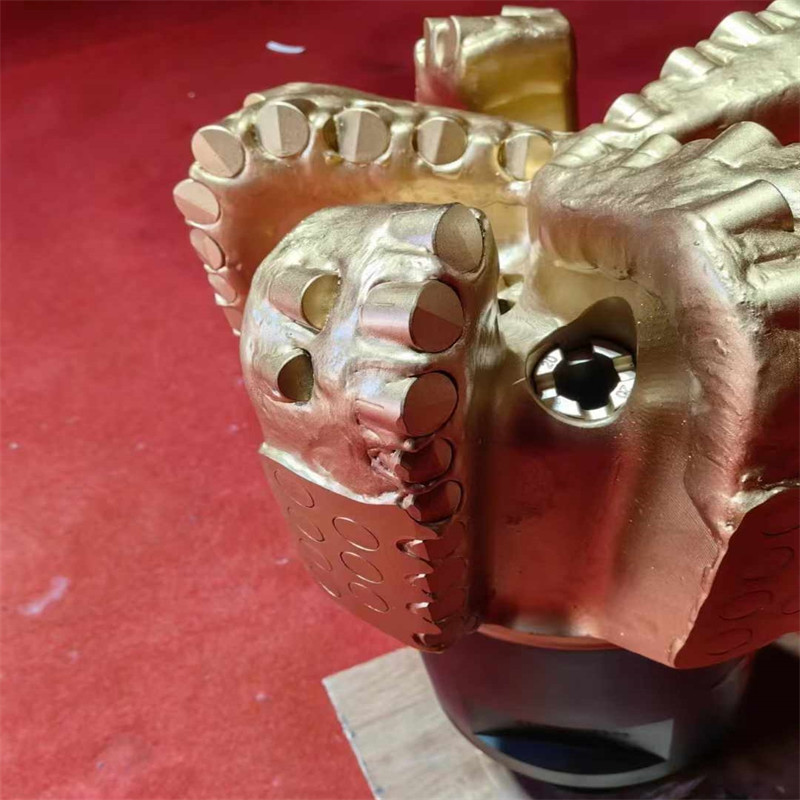

    Detailes Show
    5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling 5 Blades Geological Drilling Steel Body PDC Drill Bit for Oil Gas for Well Drilling

    5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling5 Blades Steel Body PDC Drill Bit For Oil Gas Geological Well Drilling
