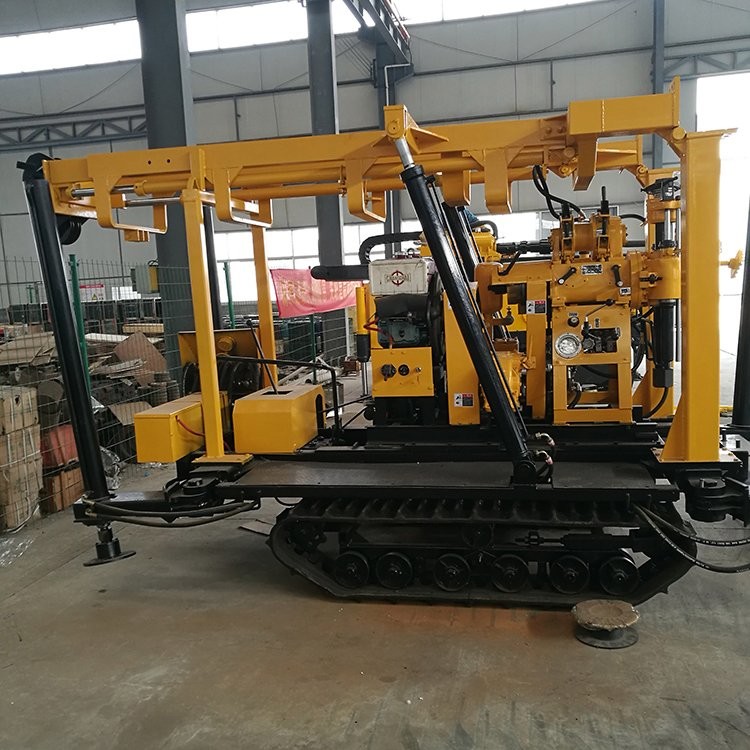

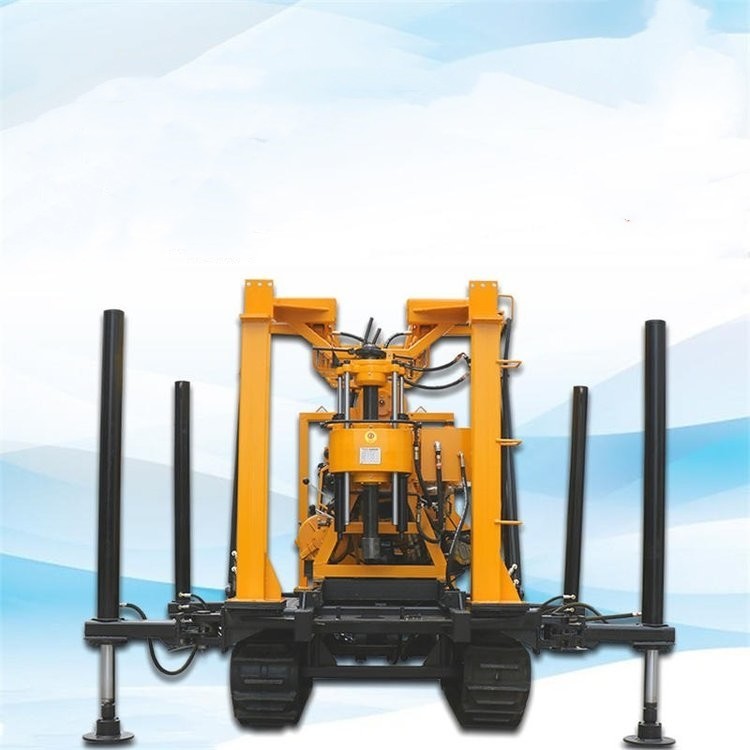

    Self Propelled Hydraulic Crawler Drilling Machine For Construction Site Survey

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : XY-150
    Certification : ISO9001
    Supply Ability : 30 Sets/Month
    • Product Details
    • Company Profile

    Self Propelled Hydraulic Crawler Drilling Machine For Construction Site Survey

    Crawler Self-propelled Hydraulic Drilling Rig for Construction Site Survey


    Exploration drilling rig, geological drilling rig, deep hole drilling rig


    1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
    2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
    3. It can drill sandy clay and rock formations of grade 2-9.

    Specifications of XY-100 hydralic core drilling rig

    ModelXY-100
    Drilling depth110
    Maximum open hole caliber220mm
    End hole caliber75mm
    Drill rod caliber50mm /42mm
    Drilling angle90
    Drilling rig weight (exclude diesel engine)610kg
    Unity machine dimensions2.1*0.9*1.3m
    Spindle
    Spindle speed130/300/480/730/830/1045 r/min
    Spindle stroke450mm
    Hoist
    Max. lifting capacity with single rope1600kg
    Lifting speed with single rope1.06/0.67/0.32 m/s
    Wire rope caliber13mm
    Wire rope cubic measure35mm
    Hug floodgate caliber254mm
    Hug floodgate belt width50mm
    Distance between drill and hole230mm
    Mud pump
    TypeHorizontal single-urn twin-action
    Displacement (with diesel engine/electric motor)170l/min
    Max. pressure1.5mpa
    Work pressure0.7mpa
    Power
    Diesel engineS1100
    Electric motorY160M-4 / 10KW

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.


    Parameters of XY-150 hydraulic core drilling rig

    ModelXY-150
    Drilling depth(m)150
    Maximum opening diameter(mm)219
    The final hole diameter(mm)73
    Rod diameter(mm)42/50
    Spindle speed (r/min)140/295/470/790/1010
    Spindle stroke(mm)450
    Hoisting capacity (kn)14
    Steel wire diameter(mm)9.3
    Maximum pressure (mpa)1.2
    Working pressure (mpa)0.7
    displacement(l/min)150
    Hydraulic pump pressure (mpa)1.2
    Hydraulic pump rotation speed (r/min)1800
    Matched driving power (diesel engine and motor)S1105 diesel engine and 11kw motor

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.


    Parameters of XY-200 hydraulic core drilling rig

    ModelXY-200
    Maximum opening diameter400mm
    Maximum borehole depth200m
    Diameter of the end hole75mm
    Borehole dip angle90-75°
    Machine overall size2.75*0.95*1.60m
    Drill pipe diameter50mm
    Weight of drill rig diameter of drill pipe (without power)760kg
    Spindle
    Shaft rotation speed71/142/310/20r/min
    Vertical axis stroke450mm
    Windlass
    Maximum lifting weight of single rope2008kb
    Drum lifting speed17/35/75/160 rm/s
    Wire rope diameter:13mm
    Wire rope capacity35mm
    Width of sluice70mm
    Mud pump
    Type: horizontal single cylinder double actionflow:180L/min
    Maximum pressure1.5mpa
    Working pressure0.7mpa
    Inlet size50mm
    Outlet pipe diameter45mm
    Power
    Diesel oil22hp
    Rated speed2200r/min
    Electric machinery15kw
    Rated speed1460r/min

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

    Self Propelled Hydraulic Crawler Drilling Machine For Construction Site SurveySelf Propelled Hydraulic Crawler Drilling Machine For Construction Site SurveySelf Propelled Hydraulic Crawler Drilling Machine For Construction Site SurveySelf Propelled Hydraulic Crawler Drilling Machine For Construction Site Survey

    FAQ:

    1. How to place an order?
    Step 1, please tell us the model and quantity you need;
    Step 2, then we will create a PI for you to confirm the order details;
    Step 3, once we confirm everything, we can arrange payment;
    Step 4: Finally, we will ship the goods within the specified time.
    2. How to inspect the goods?
    1) Support customers to come to the factory for on-site inspection.
    2) Support customers to designate third-party companies for inspection.
    3) Support video inspection.
    3. Do you have after-sales service?
    Yes, we have a dedicated service team to provide you with professional technical guidance. If needed, we can send our engineers to your workplace to provide training for your employees.
    4. How about quality assurance?
    We provide a one-year quality guarantee for the host of the machine.
