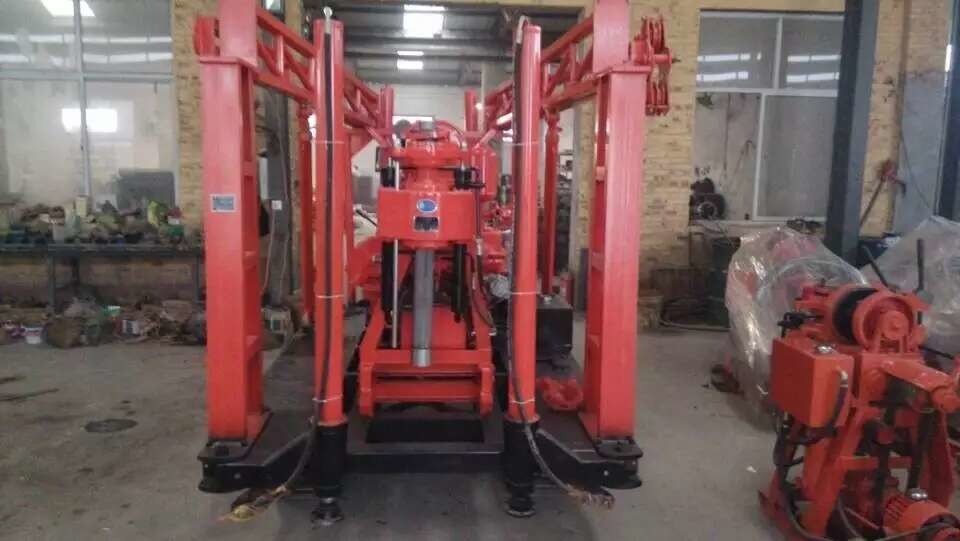

    200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : XY-200 type
    Certification : ISO9001
    Supply Ability : 50 Sets/Month
    • Product Details
    • Company Profile

    200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig

    200m Geological Geotechnical Prospecting Hydraulic Core Drilling Rig/Diesel Engine Geological Investigation Diamond Core Drilling Rig


    1. Application scope of HZ-200YS hydraulic core drilling rig

    General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.

    2. Features of HZ-200YS hydraulic core drilling rig

    (1) This machine adopts taper clutch, which has large transmission torque and convenient operation;

    (2)The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;

    (3)The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;

    (4)The planetary gear of the hoist is increased in modulus and a support frame is installed, which greatly improves the lifting and braking capabilities of the hoist.

    (5)The drilling rig is equipped with a mobile device, which can realize the front and back movement of the drilling rig itself, which is convenient for wellhead operation.

    (6)Equipped with BW-160 mud pump, which has high pressure and large flow rate, ensuring the drilling depth and diameter.

    3. Technical parameters of HZ-200YS hydraulic core drilling rig

    ModelHZ-200YS
    Drilling depth200m
    Hole diameter0-300mm
    Final hole diameter75mm
    Drill rod diameter50mm
    Drilling angle90°~75°
    Rig weight976kg
    V-beltB950*4 B1700*3
    Active movement distance350mm
    PowerDiesel engine/motor 22HP/16.2KW
    Vertical axis
    Vertical shaft forward speed (low speed)76 164 327 489 r/min
    Vertical shaft forward speed (high speed)176 378 753 1125 r/min
    Vertical shaft reverse speed61 142 r/min
    Vertical shaft stroke450mm
    Hoist
    Single rope lifting capacity15KN
    Single rope lifting speed0.166 0.311 0.733 1.465 m/s
    Wire rope diameter9.3mm
    Wire rope capacity35m
    Mud pump
    ModelBW160
    Flow160L/min
    Pressure0-1.3Mpa
    Hydraulic pump
    SpecificationFC-25 Right SD
    Dimensions
    Length*width*height2100mm*1100mm*1450mm

    Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
