Concrete Core Drilling Penetration Testing Equipment For Construction Exploration

Ask Lasest Price
Brand Name :	Aoxing
Model Number :	XY-100
Certification :	ISO9001
Supply Ability :	30 Sets/Month

Add to Cart

Product Details
Company Profile

Concrete Core Drilling Penetration Testing Equipment For Construction Exploration

Concrete Standard Penetration Test Core Sampling Drilling Machine

Exploration drilling rig, geological drilling rig, deep hole drilling rig

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.

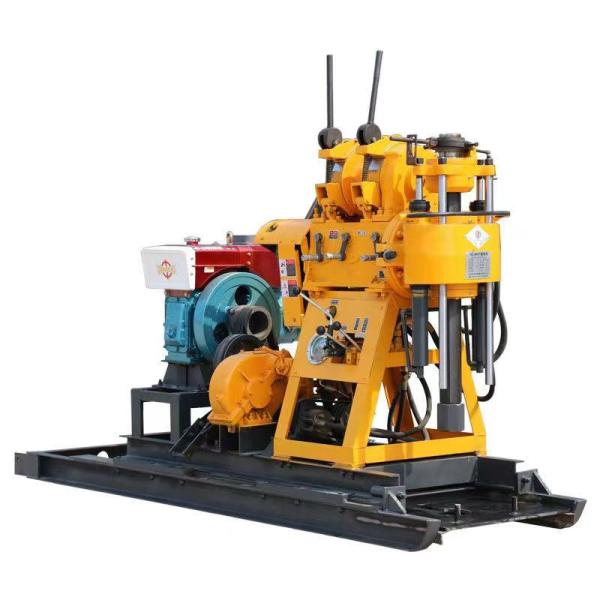

Specifications of XY-100 hydralic core drilling rig

Model	XY-100
Drilling depth	110
Maximum open hole caliber	220mm
End hole caliber	75mm
Drill rod caliber	50mm /42mm
Drilling angle	90
Drilling rig weight (exclude diesel engine)	610kg
Unity machine dimensions	2.10.91.3m
Spindle
Spindle speed	130/300/480/730/830/1045 r/min
Spindle stroke	450mm
Hoist
Max. lifting capacity with single rope	1600kg
Lifting speed with single rope	1.06/0.67/0.32 m/s
Wire rope caliber	13mm
Wire rope cubic measure	35mm
Hug floodgate caliber	254mm
Hug floodgate belt width	50mm
Distance between drill and hole	230mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor)	170l/min
Max. pressure	1.5mpa
Work pressure	0.7mpa
Power
Diesel engine	S1100
Electric motor	Y160M-4 / 10KW

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

Parameters of XY-150 hydraulic core drilling rig

Model	XY-150
Drilling depth(m)	150
Maximum opening diameter(mm)	219
The final hole diameter(mm)	73
Rod diameter(mm)	42/50
Spindle speed (r/min)	140/295/470/790/1010
Spindle stroke(mm)	450
Hoisting capacity (kn)	14
Steel wire diameter(mm)	9.3
Maximum pressure (mpa)	1.2
Working pressure (mpa)	0.7
displacement(l/min)	150
Hydraulic pump pressure (mpa)	1.2
Hydraulic pump rotation speed (r/min)	1800
Matched driving power (diesel engine and motor)	S1105 diesel engine and 11kw motor

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

Concrete Core Drilling Penetration Testing Equipment For Construction Exploration

Hengshui Aoxing Geological Equipment Co., Ltd. has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packer, manual packer, high-pressure grouting pipe, pneumatic hose, FULO grouting pipe, sleeve valve grouting pipe, grouting data acquisition instrument, grouting pump, screw grouting pump, cement mixer, high-speed grouting machine, mud station, spray, Lurong test packer and Lurong test equipment, diamond bit, reamer, geological drill pipe and casing, hydraulic drill, core drill, geological drill, exploration drill, soil testing and investigation drill, full hydraulic drill, module drill, portable drill, water well drill, engineering drill, mechanical top drive drill, small drill, DHT drill, air compressor, core barrel, fishing bucket, SP T tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.

Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.

We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
