Water Conservancy Core Drill Equipment For Geology Bridge And Tunnel Exploration

Ask Lasest Price
Brand Name :	Aoxing
Model Number :	XY-200
Certification :	ISO9001
Supply Ability :	30 Sets/Month

Add to Cart

Product Details
Company Profile

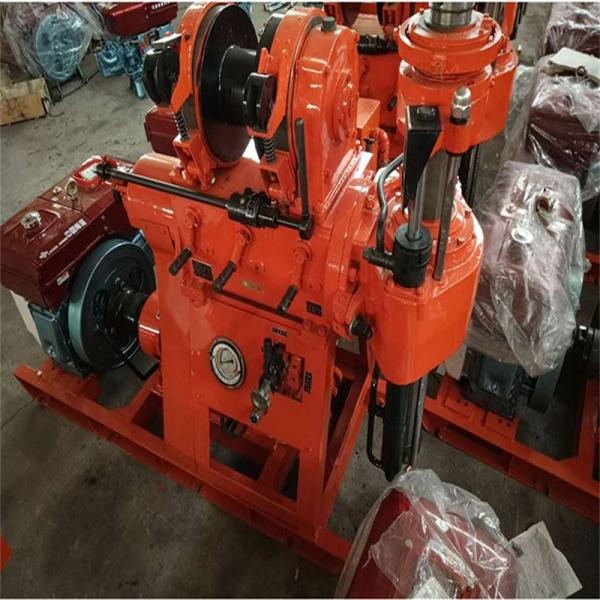

Water Conservancy Core Drill Equipment For Geology Bridge And Tunnel Exploration

Core Drilling Machine For Water Conservancy, Geology, Bridge And Tunnel Exploration

Exploration drilling rig, geological drilling rig, deep hole drilling rig

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.

Tech paraneter	Model	XYD-130	XYD-180	XYD-200
	Drilling depth(m)	130	180	65
	Open hole dia (mm)	220	220	325
	End hole dia(mm)	75	75	75
	Drill rod dia(mm)	42-60	42-60	42-60
	Drill angle(°)	90-75	90-75	90-75
	Matching power(kw)	13.2	13.2	15
	Weight without power(kg)	3350	3400	3600
	Dimension(m)	3.81.952.7	3.81.952.7	3.81.952.7
Spindle	Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke(mm)	450	450	450
Crawler chassis	Crawler size(m)	3509048	3509048	3509048
	Clinbing angle(°)	20°	20°	20°
	Walking speed(kn/h)	10km/h	10km/h	10km/h
	hydraulic landing leg valid height(mm)	1300	1300	1300
Drill mast	Rated load(ton)	18	18	18
Drill mast	Height(m)	6.5	6.5	6.5
Winch	Dispalcement(L/min)	160	160	160
	Max. pressure(MPa)	1.3	1.3	1.3
	Times/min	165	165	165
	Inlet hose dia(mm)	51	51	51
	0ut let hose dia(mm)	32	32	32

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
