Spt Soil Test Sampler For Spt Sample Soil Test

Product Description:

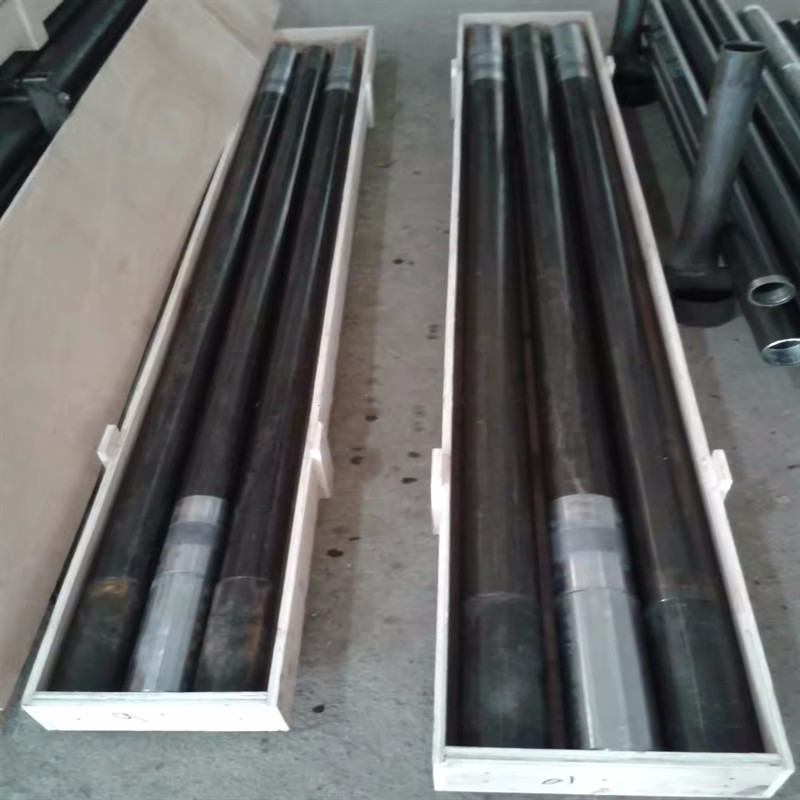

SPT split tube sampler Components including ball valve adaptor, split tubes, basket retainer and SPT shoe.

SPT Split Tube Sampler is designed for carrying out the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990 and ASTM standards. The Top Ball Valve Adaptor, pair of Split Spoons, and open SPT Shoe compose a complete set of Split Tube Sampler. A Basket Retainer made from steel or plastic also is available as an option with the sampler. The ball valve adaptor prevents samples from being washed out of the sampler when it is withdrawn from the borehole. A 60 degree nose cone or long solid rod with 60 degree point is available for carrying out SPT (c) tests in gravel and loose material. The screw connection on the top adaptor depends on the type of drill rods being used to drive the sampler. Most frequently used rods are 1-1/2" B.S. Whitworth, NWY Rod, BW or AW.

The standard Split Tube Sampler is 2" (50.8 mm) OD x 1-3/8" (34.9 mm ) ID x 18" (457 mm) / 24" (610 mm) long. For heavy driving conditions, the Heavy-duty "Tuflok" design is available.

The split tube of the sampler contains a PVC coreliner designed to retain the sample during sampling and to protect the sample once it is removed for its trip to the laboratory.

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting and drilling materials in the fields of water conservancy, geology, mining, tunnel, subway, construction, geological survey, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed slurry making machines, mud stations, grouting machines, Lurong test packers and Lurong test equipment, diamond drill bits, reamers, geological drill rods and casings, survey drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, rock core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and drilling accessories, grouting pump accessories and drilling rig accessories.

Our team is committed to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Waiting for engineering drilling to provide solutions.

We can provide customers with accurate, valuable, and targeted solutions and services based on their specific requirements and needs.
