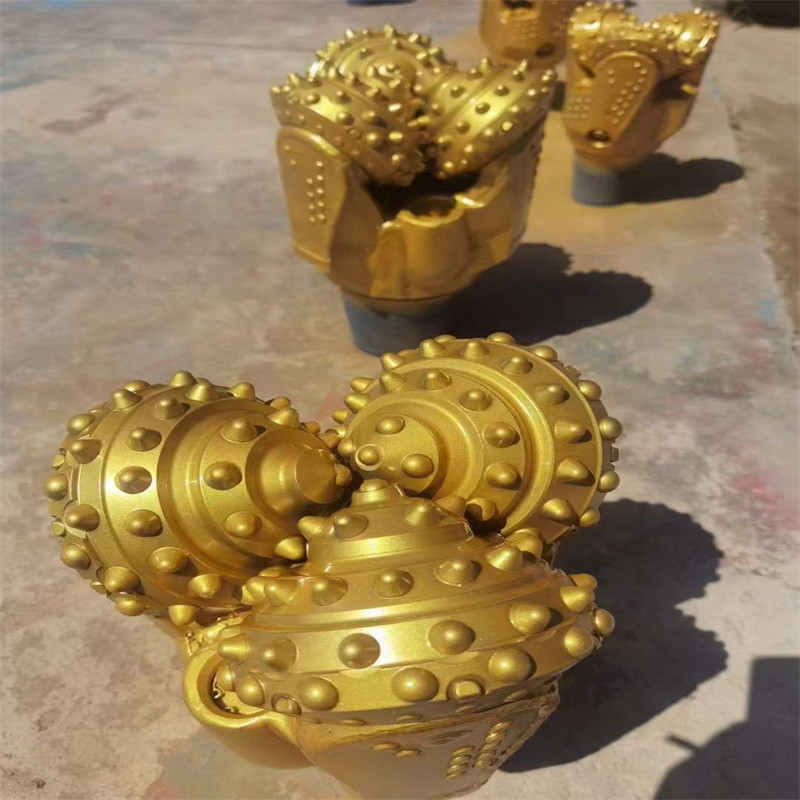

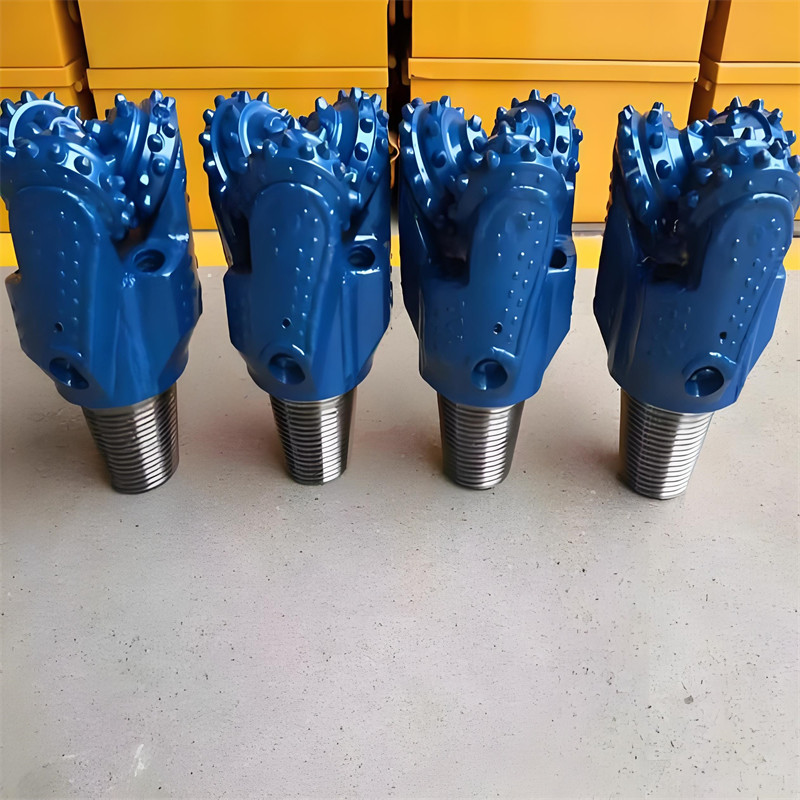

Tricone Core Drilling Bits/Oil Well Drill Bit for Hard Rock Drilling

Ask Lasest Price
Brand Name :	Aoxing
Certification :	ISO9001
Supply Ability :	100 Piece/Month

Add to Cart

Product Details
Company Profile

Tricone Core Drilling Bits/Oil Well Drill Bit for Hard Rock Drilling

IADC	WOB	RPM	Applicable Formations
	(KN/MM)	(r/min)
	(Bit Dia)
116 117	0.35~0.8	150~80	Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.

126 127	0.35~0.9	150~70	Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,softshale.soft limestone,ect.

136 137	0.35~1.0	120~60	Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect.

216 217	0.4~1.0	100~60	Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect.

246 247	0.4~1.0	80~50	Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.

417 437	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc.
447
517 527	0.35~1.0	140~60	Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect.

537 547	0.45~1.0	120~50	Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect.

617 627	0.45~1.1	90~50	Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.

637	0.5~1.2	80~40	Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.

Tricone Core Drilling Bits/Oil Well Drill Bit for Hard Rock Drilling
