PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well

Ask Lasest Price
Brand Name :	Aoxing
Model Number :	55/657594108/113/133/145/153/175/185/193
Certification :	ISO9001
Supply Ability :	500 Piece/Month

Add to Cart

Product Details
Company Profile

PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well

Details of Drag Bit

Size	55mm,65mm,75mm,94mm,108mm,113mm,133mm, 145mm,153mm,175mm,185mm,193mm
Bit Type	pillar type,concave,three wings,four wings,five wings,six wings
PDC Cutter Size	1303,1308,1304,1603
Body Materials	steel,tungsten carbide matrix
Suitable Rock	mud stone,limestone,shale,sandstone,granite

Parameter

Drilling Diameter	Blade Count	Cutter Size	Nozzle Number	Bit Slot	Pin Size
5 5/8''	3	1308	3	2.7''*1.5''	2 7/8''
5 5/8''	5	1308	5	2.7''*1.5''	2 7/8''
6''	4	1308	4	4''*1.5''	3 1/2''
6''	5	1308	5	4''*1.5''	3 1/2''
8 1/2''	4	1308	4	5''*2''	4 1/ 2''
8 1/2''	5	1308	5	5''*2''	4 1/2''
8 1/2''	6	1308	6	5''*2''	4 1/2''
9 1/2''	5	1308	5	5''*2''	4 1/2''
9 1/2''	6	1308	6	5''*2''	4 1/2''
12 1/4''	5	1308	5	6''*2''	6 5/8''

PDC 5in 6in 7in 8in 9in10in Drill Bit for Water Well

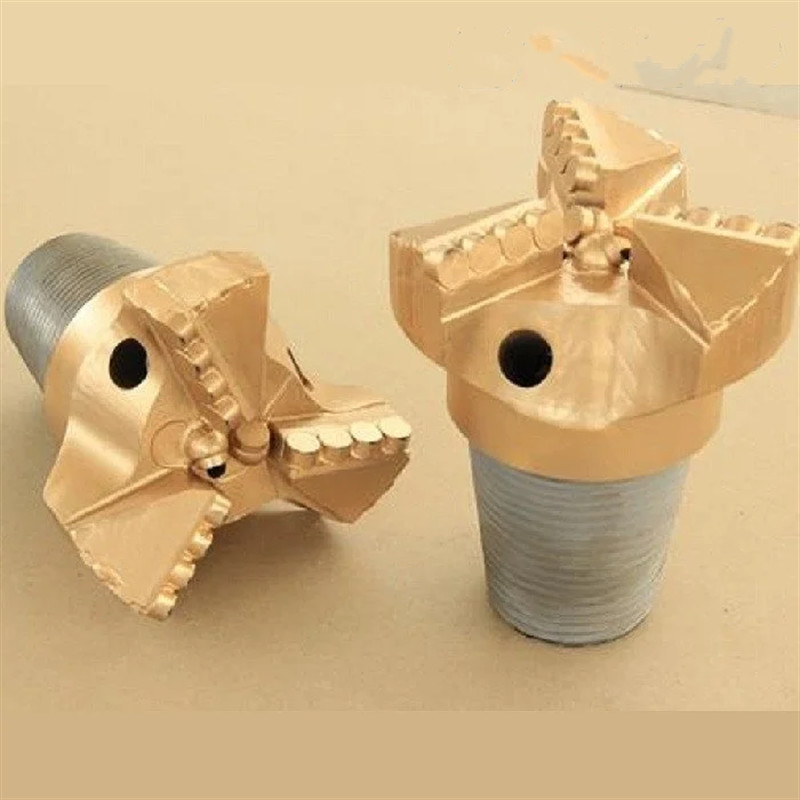

PDC Drill Bit

PDC Drilling bit is made by PDC cutters brazed to Steel Body or casing steel body. The PDC cutter has high hardness, abrasion resistance and toughness, the PDC Drag Drilling bit life is 20-40 times, and the drilling efficiency is 50% higher of tungsten carbide drill bit.
Application

PDC Drag bit is applied to rock formation f below 12, like sandstone, mudstone, etc., it is mainly used for Coal mining ,water well, geothermal well, geological exploration, borehole, gas drainage hole, discharge water hole, blast hole,etc.

Our Advantages

1.High density (low porosity)

2.High uniformity of composition and structure
3.Excellent adhesion between diamond particles
4.High wear resistance
5.High impact resistance
6.High thermal stability
7.Optimized interface between diamond and tungsten carbide layer for excellent bonding
