PDC Concave Drilling Bit Rock Drilling Water Well Coal Mining PDC
Drill Bit
Product Description
Product Parameters
-Product Advantages -
| Product Introduction: | |

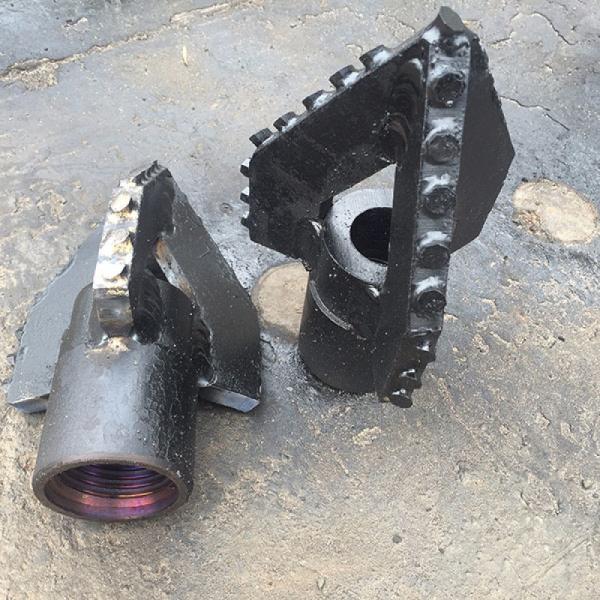

| PDC non coring drill bit is mainly used for water injection and
drainage in coal mine geology, rotary drilling for underground gas
drainage in coal mine and drilling for anchor net support in coal
mine. Its service life is 10 to 30 times longer than that of a
normal carbide drill. Different structure of the drill body welding
different positions of the composite pieces, so that the functional
properties of the bit is also different.So there are many different
types of PDC non coring drill bits on the market. |
PDC non coring drill bit is highly adaptable to drilling in complex
rock formations, with good stability and hardness, strong wear
resistance, blade strength and impact resistance, high drilling
efficiency. The PDC non coring drill bit is a super-hard geological
diamond that can be directly connected to the drill pipe.
|
| 1. General specification:75#,90#,113#,133#,153#,171#,219# |
| 2. Enhanced specification:75#,90#,113#,133#,153#,171#(Dual water
ball),171#(Three water ball) |
| 3. Special type specification:65#,153#(4 wing),3 wing(It can be
directly connected with the drill pipe)Specifications are
32#,42#,50#,60#,76#,89#(Routine for 50#) |
| 4. Composite sheet reinforced:There are mainly
1304,1308,1313,1613,1906,1908,Routine for1304,Enhanced1308
Specifications are75#,91#,110#,130#,150#,170#. |
In general, conventional 1304 is the most common, and the dosage is
also the largest. According to the formation conditions, it can be
matched with the geological sheet/petroleum sheet to achieve
reasonable use.
Applicable stratum: clay stratum, sand stratum, gravel stratum and
weathered stratum.
-PRODUCT BRIEF-
Strata Grading Instructions
Grade 1 loose soil: secondary loess, secondary laterite, soft sandy
soil without gravel and breccia, diatomaceous earth
Grade 2 loose rocks: loess, laterite, peat, clay, sand, kaolin
Grade 3 soft rocks: strongly weathered shale, slate, dry pasture
and schist, slightly cemented sand
Grade 4 slightly softer rocks: shale, sandy shale, oil shale,
carbonaceous shale, calcareous shale, sand-shale interbedded,
argillaceous limestone
Grade 5 slightly harder rock: gravel and gravel layers, collapsible
layers, argillaceous slate, sericite chlorite slate, schist,
limestone
Grade 6-7 medium hard rock: chlorite, mica, slate, dry pasture,
schist, silicified limestone, calcite
Grade 8-9 hard rock: silicified mica, gneiss, basalt, diabase,
pyroxenite, quartz Anshan porphyry
Grade 10-11 hard rock: granite, granodiorite, gneiss, rhyolite,
quartzite
Level 12 Hardest Rocks: Quartzite, Jasperite, Cape Shale, Corundum,
Quartz, Flint, Jasper
| Rock grouping and recommended use of the bit table |
| Grade | name | Represents | Drilling speed | Suggested drill bit |
| 1 | Loose soil | redeposited loess,lateritite,Soft sandy soil free of gravel and
breccia,diatomite | 15/H | Pineapple bit,slice,plain film,Scraper coreless bit |
| 2 | Loose soil | loess,red clay,cumulosol,Sand soil,Kaolin class | 8/H | Pineapple bit,denticle,slice,Triangle,Bread |
| 3 | Soft rock | Strongly weathered shale,Slate,schist,Slightly cemented sand layer | 6/H | Scraper coreless bit,Concave three wings,slice,Breadslice |
| 4 | A little soft rock | Slate,arenaceous shale,carbonaceous shale,argillaceous
marl,calcareous shale | 5/H | scraper,Recessed coreless
bit,slice,Bread,Breadslice,Triangle,Electroplated diamond |
| 5 | A little hard rock | Rubble and gravel layer collapse
layer,Slate,limestone,Marble,schist | 3/H | Concave three wings,Bread,A helmet piece,Electroplated diamond |
| 6-7 | Medium hardness | Slate,schist,Silicified limestone,Calcite | 2/H | Bread,A helmet piece,Electroplated diamond,Hot pressed
diamond,Innovative no.7 fast bit |
| 6-7 | Medium hardness | Slate,schist,Silicified limestone,Calcite | 2/H | Bread,A helmet piece,Electroplated diamond,Hot pressed
diamond,Innovative no.7 fast bit |
| 8-9 | Hard layer | Basalt,Quartz anshan porphyry,Fai green rock | 1.2/H | A helmet piece,Low-alcohol electroplating,Low thermal,Innovative
no.7 fast bit |
| 10-11 | Super Hard rock | Granite,granodiorite,gneiss,rhyolite,aposandstone | 0.8/H | Low-alcohol electroplating,Low thermal,Innovative no.7 fast bit |
| 12 | Super Hard rock | aposandstone,jasperite,hornberg,corundolite | 0.3/H | Low-alcohol electroplating,Low thermal,Innovative no.7 fast bit |
Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of
market experience and is a manufacturer and supplier of grouting
materials and drilling materials in the fields of water
conservancy, geology, mining, tunnels, subways, construction,
geological exploration, mining exploration, geotechnical
engineering, soil investigation, etc.
The main products include: inflatable or water filled packers,
manual packers, high-pressure grouting pipes, pneumatic hoses, FULO
grouting pipes, sleeve valve grouting pipes, grouting data
acquisition instruments, grouting pumps, screw grouting pumps,
cement mixers, high-speed grouting machines, mud stations,
sprayers, Lurong test packers and Lurong test equipment, diamond
drill bits, hole extenders, geological drill rods and casings,
exploration drilling rigs, water well drilling rigs, engineering
drilling rigs, hydraulic drilling rigs, air compressors, core
barrels, salvage barrels, SPT tools, soil sampling tools, drilling
tools and accessories, grouting pump accessories and drilling rig
accessories, etc.
Our team is dedicated to dam curtain consolidation grouting,
foundation engineering grouting, mineral exploration, soil
investigation, and geological engineering. Provide solutions for
engineering drilling.
We can provide accurate, valuable, and targeted solutions and
services to our customers based on their specific requirements and
needs.
