    Gold Quarry DTH Drilling Rig Machine 30m Deep Borehole For Mining

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : HW925
    Certification : ISO9001
    • Product Details
    • Company Profile

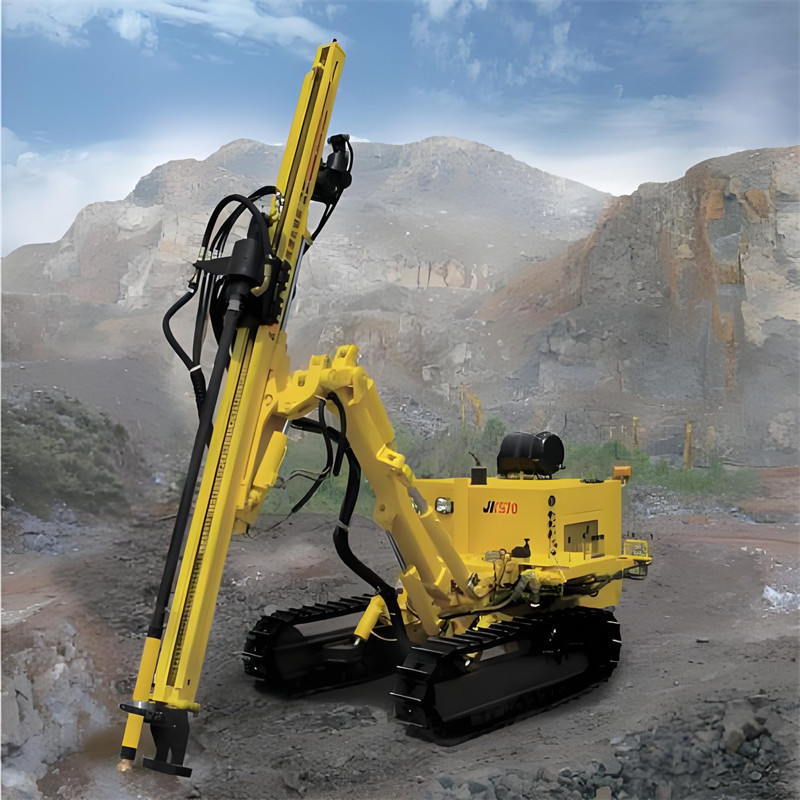

    Gold Quarry DTH Drilling Rig Machine 30m Deep Borehole For Mining

    30m Mining Gold Quarry DTH Drilling Rig/30m Deep Borehole Mine Drill Rig

    The down-the-hole drilling rig uses the impactor and the drill bit that dive into the bottom of the hole to impact and break the rock, so it is called a down-the-hole drilling rig. Widely used in metal mines, hydropower, transportation, building materials, harbors and national defense projects. Down-the-hole drilling rigs can drill holes in rocks above medium hardness (f≥8).


    The down-the-hole drilling rig can be used for drilling rock anchor holes, bolt holes, blast holes, grouting holes, etc. in urban construction, railway, highway, river, hydropower and other projects.


    1. Crawler site, while ensuring stability, can adapt to a variety of harsh working conditions;

    2. Equipped with two-stage dry dust removal device, the environmental pollution is small;

    3. Purpose-built for hard strata conditions the HW-925, DTH drilling machine is the right choice for Metal, Limestone, Dolomite and Aggregate open cast quarries and mines.


    Rig Model
    Power
    Rated Power
    HW925
    Yuchai YC4DK80
    58KW
    General Specifications
    Drill depth
    30m
    Drill Pipe Sizes
    76*3000 mm
    Hole range
    110-140mm
    Equipped DTH Hammer
    4''/5''
    Rotation torque (Max.)
    3200N.m
    Rotation Speed
    60-120 rpm
    Working pressure
    0.7-2.5Mpa
    F.A.D
    8-20m3/min
    Feed Force
    20 kN
    Pull Up Force
    45 kN
    Feed Type
    Chain / cylinder
    Tramming Speed (Max.)
    3km/h
    Gradient
    25°
    Total Weight
    4700 kg
    Transportation Dimensions
    5700*2324*2550 mm
