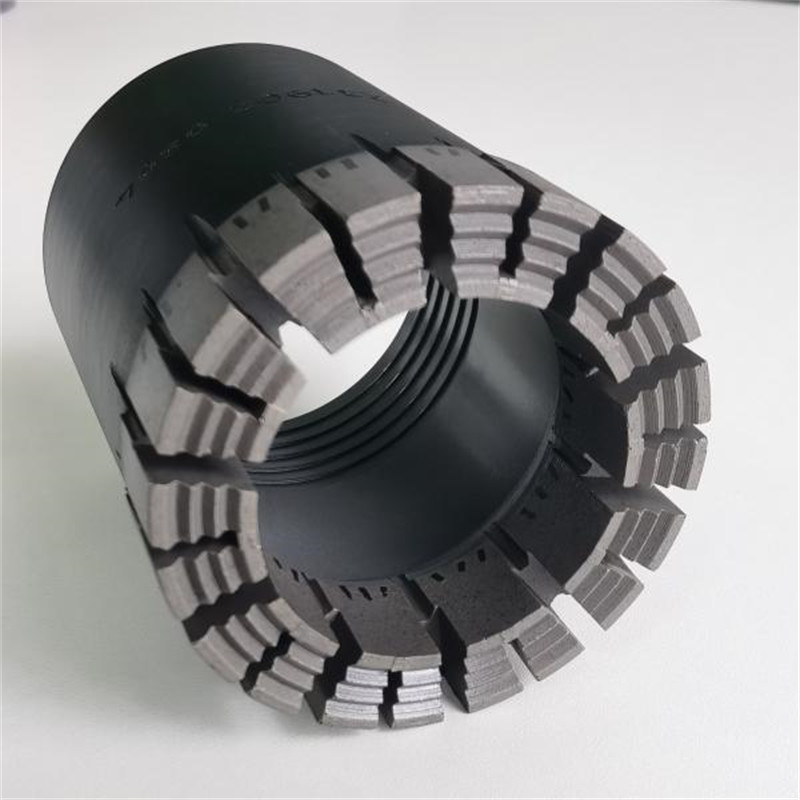

Impregnated Diamond Core Drill Bit for Hard Formation Coring

Hengshui Aoxing Geological Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers

    Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers
    • Buy cheap Impregnated Diamond Core Drill Bit for Hard Formation Coring from wholesalers

    Impregnated Diamond Core Drill Bit for Hard Formation Coring

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : AQ、BQ、NQ、HQ、PQ、PQ3、HQ3、NQ3、BQ3、NQ2
    Certification : ISO9001
    Supply Ability : 500 Piece/Month
    • Product Details
    • Company Profile

    Impregnated Diamond Core Drill Bit for Hard Formation Coring


    Diamond core bits products include: 1,drill bit: Impregnated diamond diamond drill bit, sufface set diamond drill bit, electroplated diamond drill bit, tc drill bit, PCD drill bit, thin wall drill bit; Hole: alloy reamer, polycrystalline reamer, electroplated reamer,surface set natural diamond reamer;

    Impregnated diamond bit:

    The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the crown contains a uniform distribution of these crystals that are embedded in a powdered metal bond. The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action.

    The matrix layer of the impregnated diamond core drill bits crown contains a uniform distribution of these crystal diamonds that are embedded in a powdered metal bond. The main technical parameters of impregnated diamond core drill bits are diamond specifications, like type, size, concentration and grade, as well as matrix hardness type and crown shapes, which are selected according to the hardness and abrasiveness of the formation to be drilled. If user can make rational selections according to the rock formations, then they can get satisfied drilling performance on various formations with different hardness.


    Features:

    1: The impregnated diamond core bits features drilling speed and long service life
    2: The design of more cutting edges makes drilling progress smoother
    3: During the manufacturing process, the diamond is free erosion and fully utilized
    4: The impregnated diamond core drill bits are of various configurations and meet various needs of local conditions
    5: It offers the most widely-used bit matrices as well
    6: With various specifications, our series matrix range provide an easy selection and reliable foundation for your drilling needs

    Size: Our bits are available in all standard drilling sizes. Also, non-standard sized bits can be produced according to requirements from clients
    Matrix height: 6mm-8mm (most cost-effective), 8mm-10mm (long service life), 12mm-16mm (super service life)
    Bit Crown Profiles: "W" profile, "Flat" profile, "Semi-round" profile, "Cross" profile, "Gear profile"
    Waterways: Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
    Threads: Standard Q threads as well as thread types required by clients are available

    If you need any further information, please feel free to contact with us, we will be quite pleased to show all the details you asked for.

    Description钻头 Core Bit钻头 Core Bit金刚石扩孔器Reaming Shell
    规格型号外径 Outside Diameter内径 Intside Diameter外径 Outside Diameter
    Model英寸Inches毫米 mm英寸Inches毫米 mm英寸Inches毫米 mm
    BTW2.34559.651.66742.12.3659.95
    NTW2.96575.312.21856.12.9875.7
    HTW3.76295.572.80971.13.78396.09
    AQ1.87547.631.06226.971.8948.01
    BQ2.34559.651.43336.42.3659.95
    BQ31.34559.651.3233.532.3659.95
    NQ2.96575.311.87547.632.9875.7
    NQ32.96575.311.77545.082.9875.7
    HQ3.76295.572.563.53.78396.09
    HQ33.76295.572.40661.113.78396.09
    PQ4.805122.053.34584.964.828122.65
    PQ34.805122.053.2783.084.828122.65
    T2-562.205561.64241.72.22456.5
    T2-762.992762.42961.73.01976.5
    T2-863.385862.82371.73.40686.5
    T2-1013.9761013.29583.73.996101.5
    T6-1013.9761013.11793.996101.5
    T6-1315.1571314.2521085.157131.5

    Impregnated Diamond Core Drill Bit for Hard Formation CoringImpregnated Diamond Core Drill Bit for Hard Formation CoringImpregnated Diamond Core Drill Bit for Hard Formation CoringImpregnated Diamond Core Drill Bit for Hard Formation CoringImpregnated Diamond Core Drill Bit for Hard Formation Coring

    Impregnated Diamond Core Drill Bit for Hard Formation Coring

    Diamond Drill Bit Lip Shape


    Full Round

    Higher diamond content in the bit face.higher penetration rate.and suitable for drilling hard rocks.

    Semi-round

    Even diamond distribution in the bit face,suitable for drilling medium-hard and hard rocks.or a little broken and loose formations.

    Fiat

    For impregnated diamond bit oniy,suitable for drilling hard abrasive rocks.

    Bottom Discharge Design

    Suitable for drilling sedimentary or metamorphic formations containing more powder mineraiw with high core recovery percentage,and no excessive core washout.

    Stepped

    Suitable for dr drilling medium-hard,broken or interbedded formations, hoie deviation can be prevented.

    Tapered

    Suitable for drilling soft and medium-hard formations with high penetration rate.

    Serrated Profile

    Suitable for drilling hard dense formations with high penetration rate.

    Staggered Concentric Profile
    Suitabie for drilling hard dense formations with high penetration rate under low bit weight.

    GearWheel

    Suitabie for drilling hard dense formations with high penetration rate.

    Related Products

    6mm-26mm Crown Imp Diamond Core Drill Bit for Rock Coring Drilling6mm-26mm Crown Imp Diamond Core Drill Bit for Rock Coring Drilling
    Applications
    Our diamond drill bits are widely used in mineral exploration, oil and gas exploration, hydrogeological surveys, and environmental investigations. Whether drilling rock samples or conducting geological analysis, our drill bits offer precise and efficient solutions.
