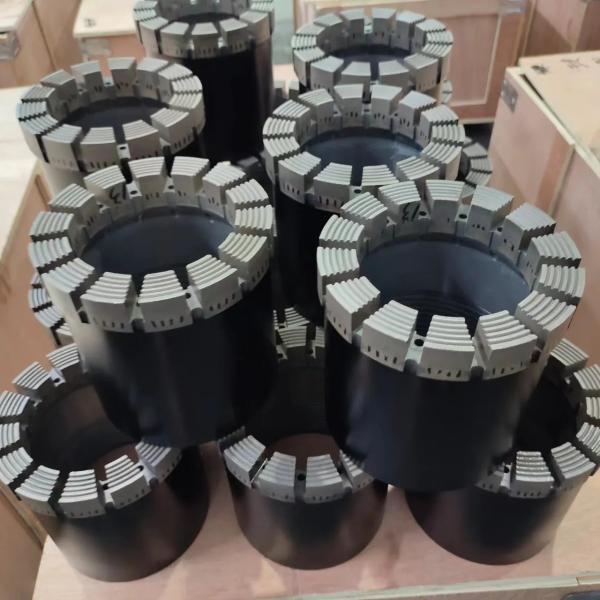

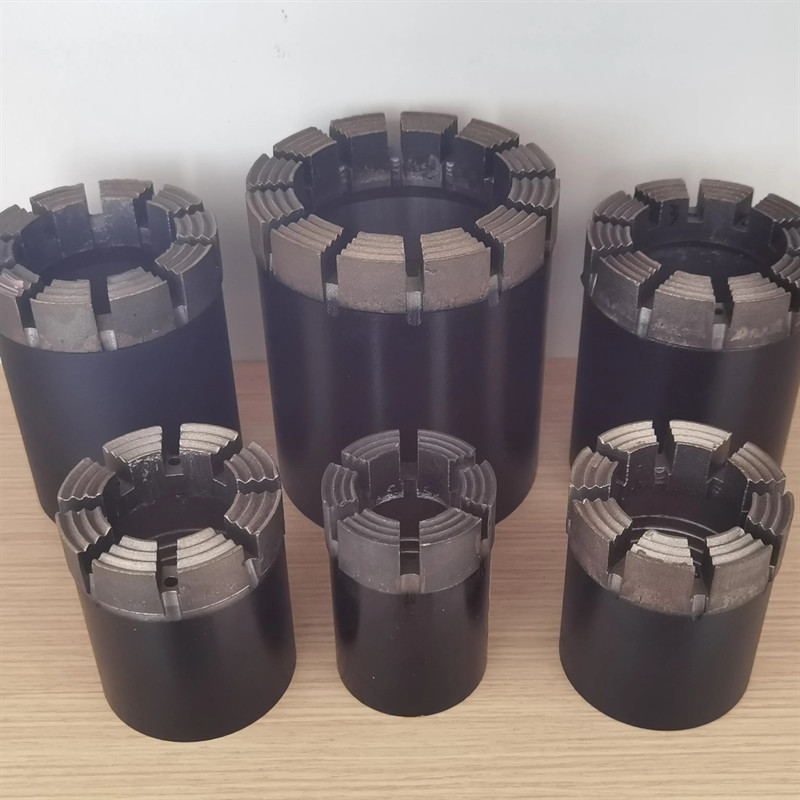

Nmlc Hmlc Impregated Diamond Drill Bit Nmlc Nx Core Bit

Product Description:

With bottom discharge diamond core bits, which is suitable for triple tube core barrels, to improve the flushing fluid's erosion against the core during drilling.

The main crown technical parameters of impregnated diamond core bits include diamond grade,size,concentration and quality,matrix hardness and crown shapes.The users can make rational selections according to the formations to be drilled.

To avoid excessive bit wear,tungsten carbide inserts are used on both sides on the waterway,and gage stones are a bit larger.

Surface Set Diamond Core Bits can be used with any type of core barrels. By varying the diamond grade, size, quality, and matrix hardness and crown shapes, the users can satisfactorily drill and core hard and homogeneous formations.

T Series Bit

MLC/WG/WM Bit

JP/YP Bit

Attention:

1.The difference between the outer diameter of the bit and the reamer should be reasonable, the outer diameter of the reamer

is 0.3-0.5mm larger than the outer diameter of the bit, and the hard formation should not more than 0.3mm.

2.When the new bit reaches the bottom of the hole light pressure (1/3 of the normal pressure),

slow turn (about 100rimin), and then continue drilling with normal parameters after the initial grinding for 10 minutes.

3.When drilling in soft rock layer, the pressure should be reduced appropriately. When drilling in intact, medium-hard orhard

rock formations, the pressure on bit should be appropriately increased; When drilling in fractured, fractured and heterogeneous

rock formations, the pressure on bit should be appropriately reduced, generally by 25%-50%.

Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting and drilling materials in the fields of water conservancy, geology, mining, tunnel, subway, construction, geological survey, mining exploration, geotechnical engineering, soil investigation, etc.

The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed slurry making machines, mud stations, grouting machines, Lurong test packers and Lurong test equipment, diamond drill bits, reamers, geological drill rods and casings, survey drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, rock core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and drilling accessories, grouting pump accessories and drilling rig accessories.

Our team is committed to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Waiting for engineering drilling to provide solutions.

We can provide customers with accurate, valuable, and targeted solutions and services based on their specific requirements and needs.
