    Tungsten Carbide Core Drill Bit Suitable for Medium Soft Formations

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : AQ、BQ、NQ、HQ、PQ、PQ3、HQ3、NQ3、BQ3、NQ2
    Certification : ISO9001
    Supply Ability : 500Sets/Month
    • Product Details
    • Company Profile

    Tungsten Carbide Core Drill Bit Suitable for Medium Soft Formations

    Tungsten Carbide Core Drill Bit Suitable for Medium Soft Formations

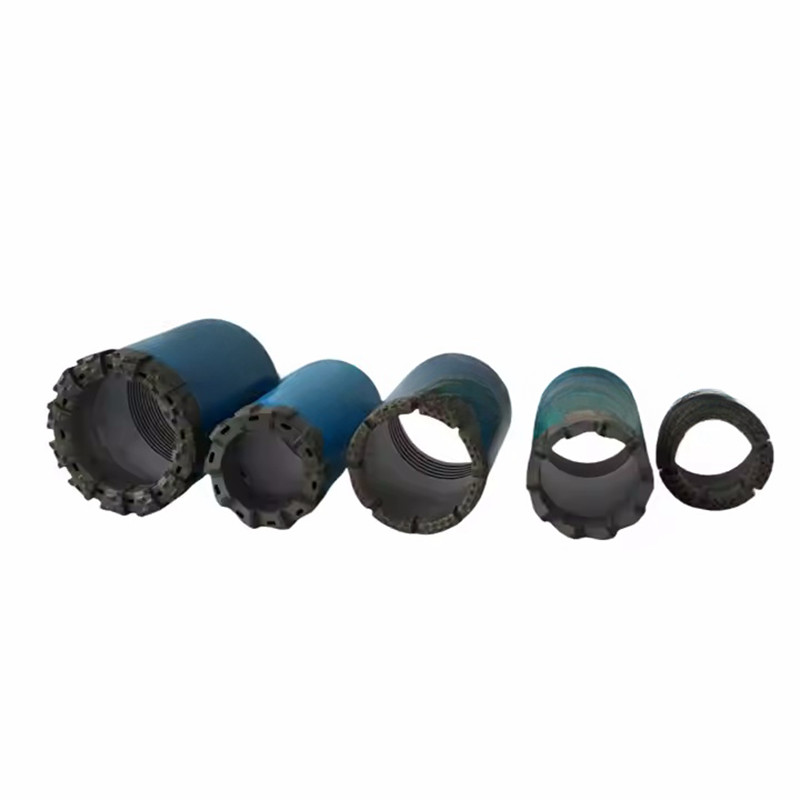

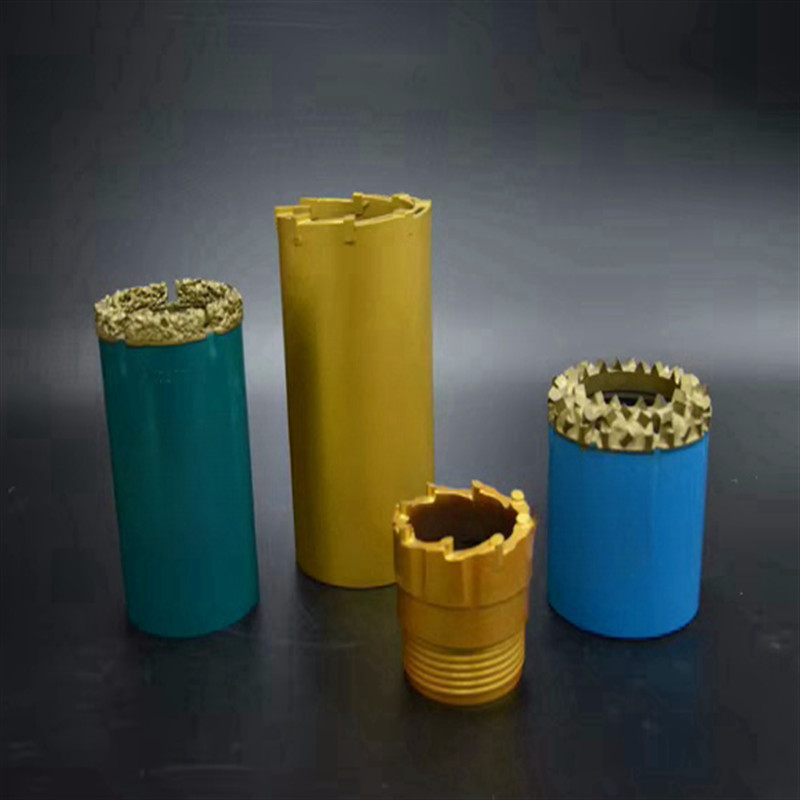

    Tungsten Carbide Core Bit

    Tungsten Carbide Core Bits are designed especially for soil investigation and geotechnical drilling, but also suitable in some applications for mineral exploration. As the tungsten Carbide is softer than diamond stones, the formations which these bits are able to handle are limited in the range of soft or some medium rocks.

    We supply two types of tungsten carbide core bits, Octagonal lnserts and Quadranguiar lnserts, The standard TC Insert type has a crown with a sawtooth profile, where each tooth is a tungsten carbide insert. Inserts may vary in shape: they may be flat plates that extend across the width of the crown, or octagonal shaped prisms arranged alternately on the inside and outside diameter of the crown. The octagonal inserts are more hard wearing because they have a greater number of cutting edges and are less prone to chip or shatter.

    Unless otherwise specified, the octagonal inserts is the standard for this type of T.C. core bits, with various sizes according to different bit kerf widths.

    Size:

    Q Series Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1AQdiamond bit47.6*27.0C9K3 K5 K7 K9
    2BQ-0.5diamond bit59.0*36.3C9 C12K3 K5 K7 K9
    3BQdiamond bit59.5*36.3C9 C12K1-K11
    4NQdiamond bit75.3*47.6C9 C12K1-K11
    5NQ+2diamond bit77.3*47.6C9 C12K3 K5 K7 K9
    6HQdiamond bit95.6*63.5C9 C12K1-K11
    7HQ+2diamond bit98.0*63.5C9 C12K3 K5 K7 K9
    8PQdiamond bit122.0*85.0C9 C12K1-K11
    9SQdiamond bit147.6*102.0C9K3 K5 K7 K9
    10NQTTdiamond bit75.3*45.0C9 C12K3 K5 K7 K9
    11HQTTdiamond bit95.6*61.1C9 C12K3 K5 K7 K9
    12PQTTdiamond bit122.0*83.0C9 C12K3 K5 K7 K9
    13NQ2diamond bit75.3*50.7C9 C12K3 K5 K7 K9

    TW/QV Series Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    TW Series
    1ATWdiamond bit47.6*30.1C9K3 K5 K7 K9
    2BTWdiamond bit59.5*42.0C9K3 K5 K7 K9
    3NTWdiamond bit75.3*56.1C9K3 K5 K7 K9
    QV Series
    1NQVdiamond bit76.3*50.7C9 C12K3 K5 K7 K9
    2HQVdiamond bit95.0*68.5C9 C12K3 K5 K7 K9

    JS/XJS系列钻头

    No.Std.ItemOD*ID(mm)Crown HeightSN.
    JS Series
    1JS76diamond bit75.3*49.0C9 C12K1-K11
    2JS95diamond bit95.0*63.0C9 C12K1-K11
    XJS Series
    1XJS56diamond bit57.3*35.0C9 C12K1-K11
    2XJS75diamond bit77.3*46.0C9 C12K1-K11
    3XJS122diamond bit122.0*80.5C9 C12K3 K5 K7 K9

    Q3 Series Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1BQ3diamond bit59.5*33.5C9 C12K3 K5 K7 K9
    2NQ3diamond bit75.3*45.0C9 C12K3 K5 K7 K9
    3HQ3diamond bit95.6*61.1C9 C12K3 K5 K7 K9
    4PQ3diamond bit122.0*83.0C9 C12K3 K5 K7 K9
    5SQ3diamond bit147.6*102.0C9K3 K5 K7 K9

    T Series Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1T2-46diamond bit46.0*31.7C6K3 K5 K7 K9
    2T2-56diamond bit56.0*41.7C6K3 K5 K7 K9
    3T2-66diamond bit66.0*51.7C6K3 K5 K7 K9
    4T2-76diamond bit76.0*61.7C6K3 K5 K7 K9
    5T2-86diamond bit86.0*71.7C6K3 K5 K7 K9
    6T2-101diamond bit101.0*83.7C6K3 K5 K7 K9
    7T6-76diamond bit76.0*57.0C6 C9K3 K5 K7 K9
    8T6-86diamond bit86.0*67.0C6 C9K3 K5 K7 K9
    9T6-101diamond bit101.0*79.0C6 C9K3 K5 K7 K9
    10T6-116diamond bit116.0*93.0C6 C9K3 K5 K7 K9
    11T6-131diamond bit131.0*108.0C6 C9K3 K5 K7 K9
    12T6-146diamond bit146.0*123.0C6 C9K3 K5 K7 K9
    13T6S-76diamond bit76.3*47.7C6 C9K3 K5 K7 K9
    14*T6S-86diamond bit86.3*57.7C6 C9K3 K5 K7 K9
    15T6S-101diamond bit101.3*71.7C6 C9K3 K5 K7 K9
    16T6S-116diamond bit116.3*85.7C6 C9K3 K5 K7 K9
    17T6S-131diamond bit131.3*100.7C6 C9K3 K5 K7 K9
    18T36diamond bit36.0*21.7C6K3 K5 K7 K9
    19TT46diamond bit46.0*35.2C6K3 K5 K7 K9
    20TT56diamond bit56.0*45.2C6K3 K5 K7 K9

    MLC/WG/WM Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1NMLCdiamond bit75.3*52.0C6 C9 C12K3 K5 K7 K9
    2HMLCdiamond bit98.8*63.5C6 C9 C12K3 K5 K7 K9
    1AWGdiamond bit47.6*30.1C6 C9K3 K5 K7 K9
    2BWGdiamond bit59.5*42.0C6 C9K3 K5 K7 K9
    3NWGdiamond bit75.3*54.7C6 C9K3 K5 K7 K9
    4NWMdiamond bit75.3*54.7C6 C9K3 K5 K7 K9

    JP/YP Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1YP36diamond bit36.5*21.5C6 C9K3 K5 K7 K9
    2YP47diamond bit46.5*29.5C6 C9K3 K5 K7 K9
    3JP75diamond bit75.3*54.5C6 C9K3 K5 K7 K9
    4JP95diamond bit95.0*63.0C6 C9K3 K5 K7 K9
    5JP110diamond bit111.0*79.0C6 C9K3 K5 K7 K9
    6JP130diamond bit131.0*94.0C6 C9K3 K5 K7 K9

    Tungsten Carbide Core Drill Bit Suitable for Medium Soft FormationsTungsten Carbide Core Drill Bit Suitable for Medium Soft FormationsTungsten Carbide Core Drill Bit Suitable for Medium Soft FormationsTungsten Carbide Core Drill Bit Suitable for Medium Soft Formations

    Attention:

    1.The difference between the outer diameter of the bit and the reamer should be reasonable, the outer diameter of the reamer

    is 0.3-0.5mm larger than the outer diameter of the bit, and the hard formation should not more than 0.3mm.


    2.When the new bit reaches the bottom of the hole light pressure (1/3 of the normal pressure),

    slow turn (about 100rimin), and then continue drilling with normal parameters after the initial grinding for 10 minutes.


    3.When drilling in soft rock layer, the pressure should be reduced appropriately. When drilling in intact, medium-hard orhard

    rock formations, the pressure on bit should be appropriately increased; When drilling in fractured, fractured and heterogeneous

    rock formations, the pressure on bit should be appropriately reduced, generally by 25%-50%.
