    T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations

    Ask Lasest Price
    Brand Name : Aoxing
    Model Number : T256 66 76 86 101
    Certification : ISO9001
    • Product Details
    • Company Profile

    T2 86, T86 Tc Core Bits For Drilling Softer Unconsolidated Formations

    T2 86, T86 Tc Core Bit for Drilling Softer Unconsolidated Formations

    Product Description

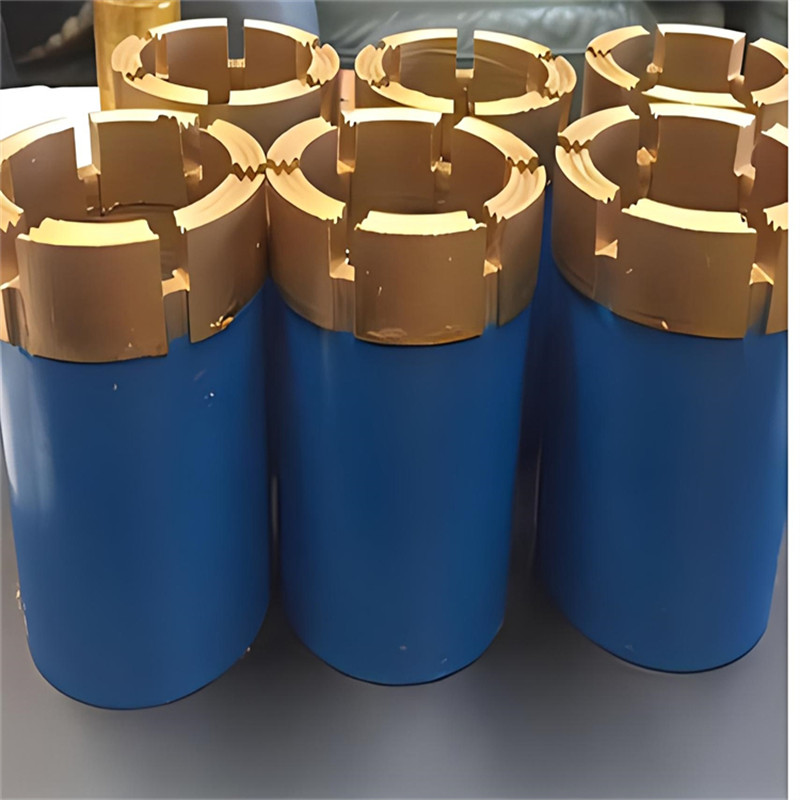

    TC (Tungsten Carbide) Core Bits possess no as hard cutting media as diamond so have a limited range of application; they are a very cost effective choice for drilling softer unconsolidated formations and is applied primarily in geotechnical soil investigation or for core drilling in overburden layers that are composed mainly of clay, sand, gypsum or soft shale. TC Core Bit's crown is composed of a tough, wear resistant matrix body with tungsten carbide wear pads gauge protection.

    Sizes Available:
    Wireline series:Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
    T2 / T series:T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
    TT series:TT 46, TT 56
    T6 series:T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
    T6S series:T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
    B series:B46, B56, B66, B76, B86, B101, B116, B131, B146
    MLC series:NMLC, HMLC, 3C, 4C, 6C, 8C
    LTK seriesLTK48, LTK60
    WF series:HWF, PWF, SWF, UWF, ZWF
    WT series:RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
    WG series:EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
    WM series:EWM, AWM, BWM, NWM, HWM
    Other sizes:AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
    Chinese standard:56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
    Russian standard:59mm, 76mm, 93mm, 112mm, 132mm, 152 mm

    T Series Bit


    No.Std.ItemOD*ID(mm)Crown HeightSN.
    1T2-46diamond bit46.0*31.7C6K3 K5 K7 K9
    2T2-56diamond bit56.0*41.7C6K3 K5 K7 K9
    3T2-66diamond bit66.0*51.7C6K3 K5 K7 K9
    4T2-76diamond bit76.0*61.7C6K3 K5 K7 K9
    5T2-86diamond bit86.0*71.7C6K3 K5 K7 K9
    6T2-101diamond bit101.0*83.7C6K3 K5 K7 K9
    7T6-76diamond bit76.0*57.0C6 C9K3 K5 K7 K9
    8T6-86diamond bit86.0*67.0C6 C9K3 K5 K7 K9
    9T6-101diamond bit101.0*79.0C6 C9K3 K5 K7 K9
    10T6-116diamond bit116.0*93.0C6 C9K3 K5 K7 K9
    11T6-131diamond bit131.0*108.0C6 C9K3 K5 K7 K9
    12T6-146diamond bit146.0*123.0C6 C9K3 K5 K7 K9
    13T6S-76diamond bit76.3*47.7C6 C9K3 K5 K7 K9
    14*T6S-86diamond bit86.3*57.7C6 C9K3 K5 K7 K9
    15T6S-101diamond bit101.3*71.7C6 C9K3 K5 K7 K9
    16T6S-116diamond bit116.3*85.7C6 C9K3 K5 K7 K9
    17T6S-131diamond bit131.3*100.7C6 C9K3 K5 K7 K9
    18T36diamond bit36.0*21.7C6K3 K5 K7 K9
    19TT46diamond bit46.0*35.2C6K3 K5 K7 K9
    20TT56diamond bit56.0*45.2C6K3 K5 K7 K9
